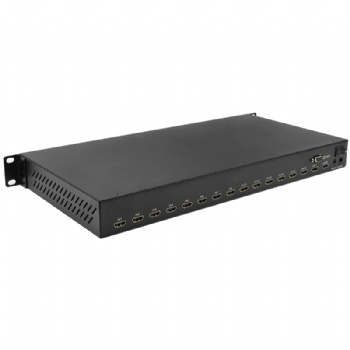

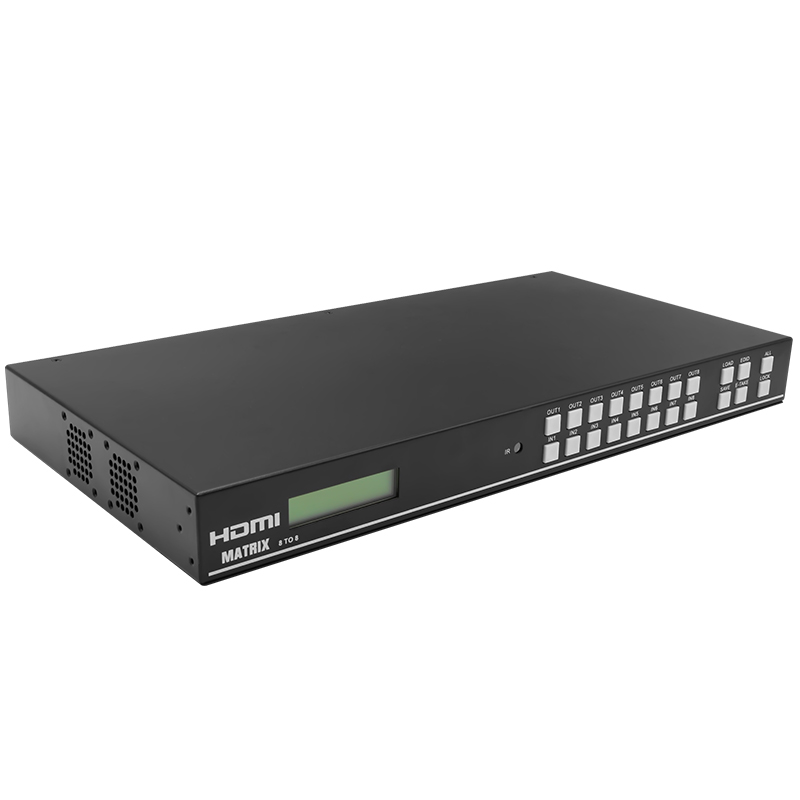

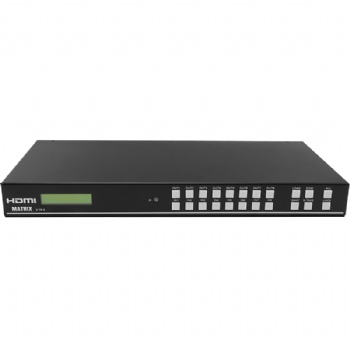

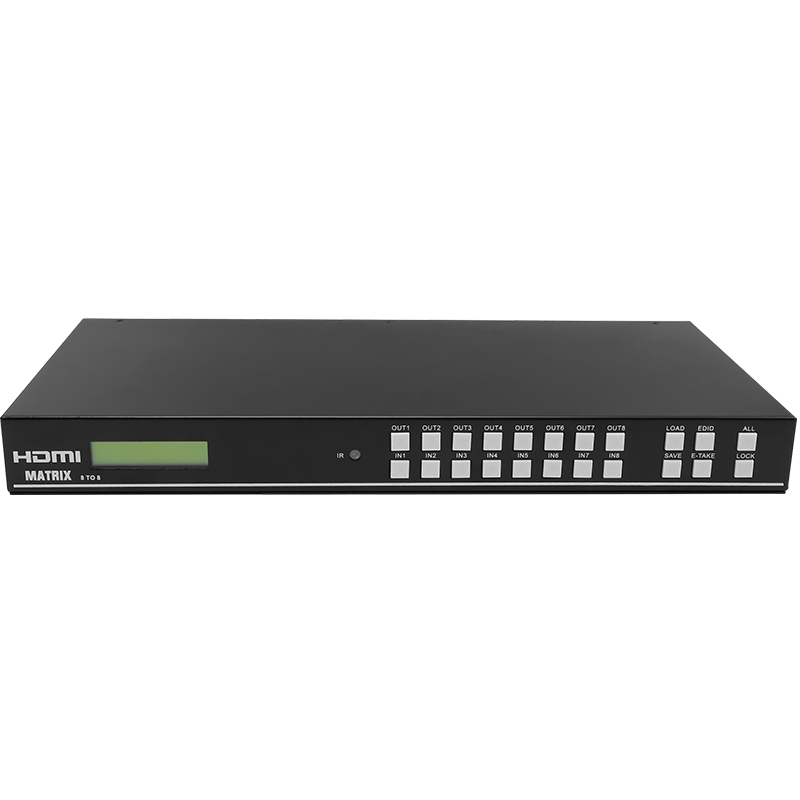

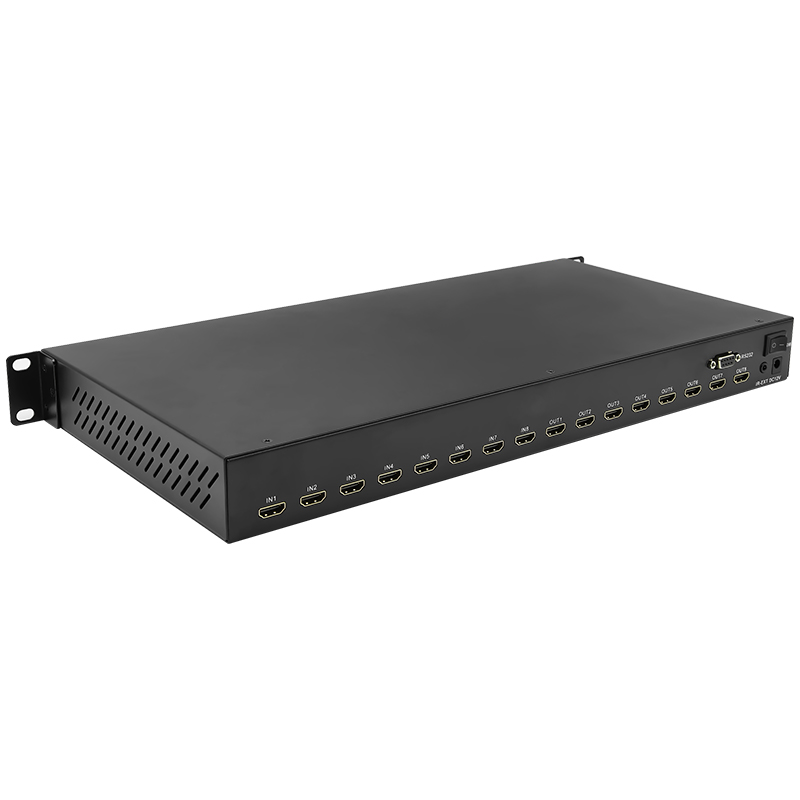

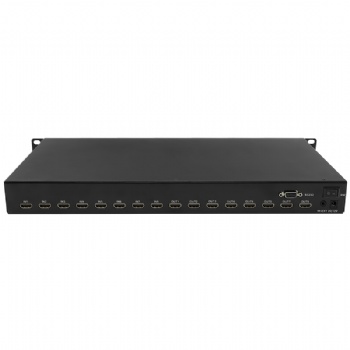

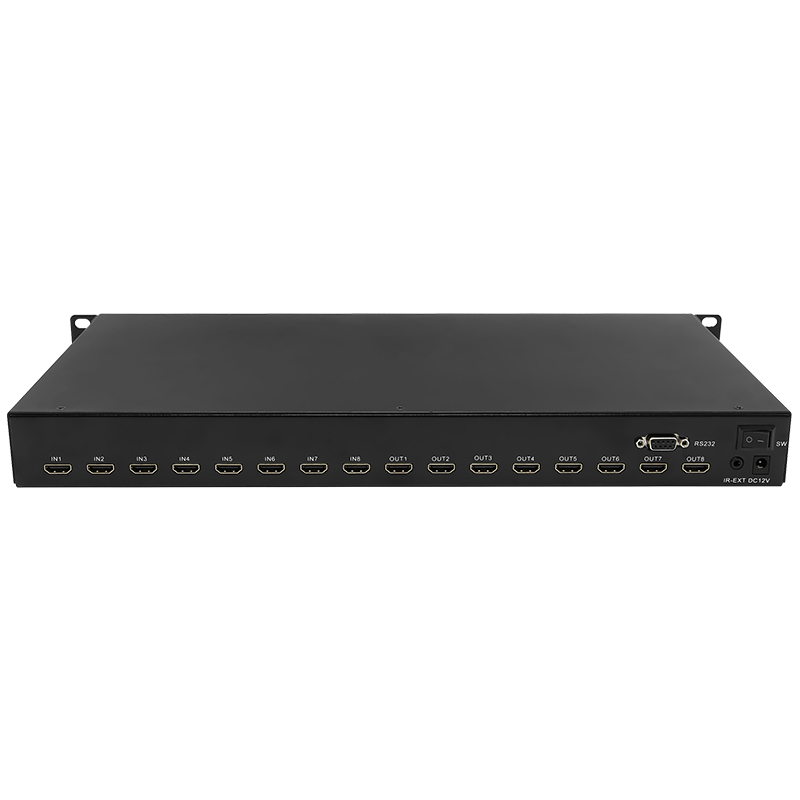

SWMX88,8x8 HDMI Matrix support 4K,3D ,HDMI 1.4 Version

This is the 8x8 HDMI Matrix, It allows any of the eight Input Channels (HDMI) to be routed to any of the eight Output Channels (HDMI), no matter the source is HDCP or not. Users can choose several different ways to control the matrix: by using infrared, RS232, and LAN and support remote control.
INQUIRY

Features

1.Allows up to eight HDMI audio/video devices to be independently switched to eight HDMI monitors, HDTV’s, or projectors.

2.The eight output channels could show the same or different source simultaneously no matter the source is HDCP or not.

3.Reading and saving EDID function from displays.

4.Support high definition resolutions, including:

5.4Kx2K,1080p, 3D, 1080i, 720p and other standard video formats.

6.Each port support both HDMI and DVI inputs.

7.With extra infrared extension receiver.

8.Four switching modes: panel buttons, local IR, RS232 and Ethernet.

9.HDCP compliant

10.HDMI 1.4 supported.

Specifications

Operating Temperature Range.........................................................0 to +35°C (32 to +95°F)

Operating Humidity Range.....................................................5 to 90 % RH (no condensation)

Input Video Signal.......................................................................................0.5-1.0 volts p-p

Input DDC Signal.........................................................................................5 volts p-p (TTL)

Video Format Supported.....................DTV/HDTV:3D/ 1080P/1080i/720P/576P/480P/576i/480i

Audio Format Supported..........................................................................DTS-HD、Dolby HD

Output Video.........................................................................................................HDMI 1.4

Maximum Transmission Distance.................................................1080P 15m over HDMI cable

Power Consumption......................................................................................24 Watts (Max.)

Dimensions.....................................................................................W436.9XH211XT44.5mm

Mass (Main unit)........................................................................................................2800g

NOTE: Specifications are subject to change without notice. Mass and dimensions are approximate.
