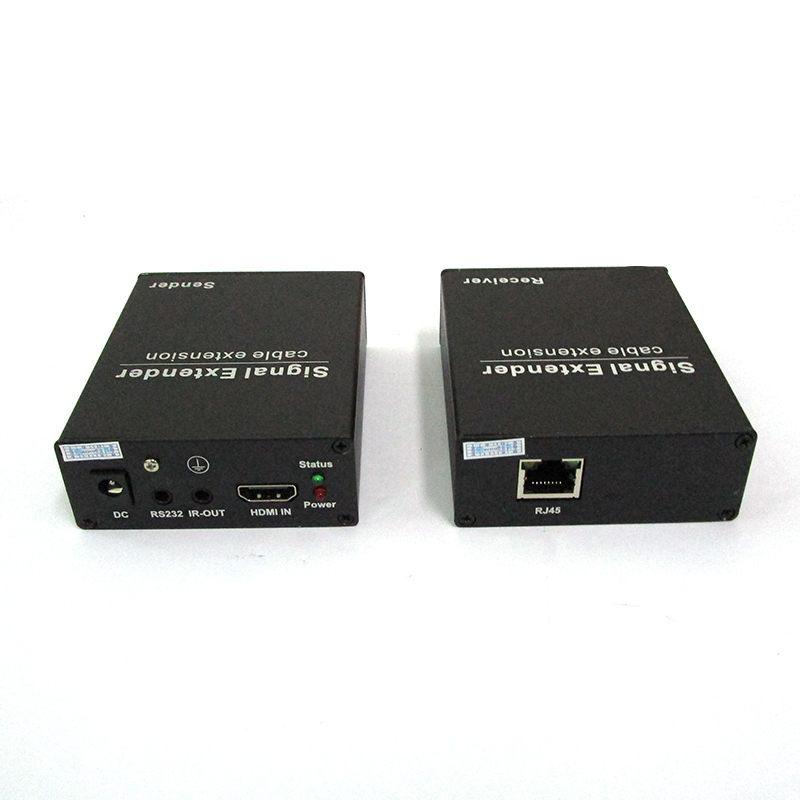

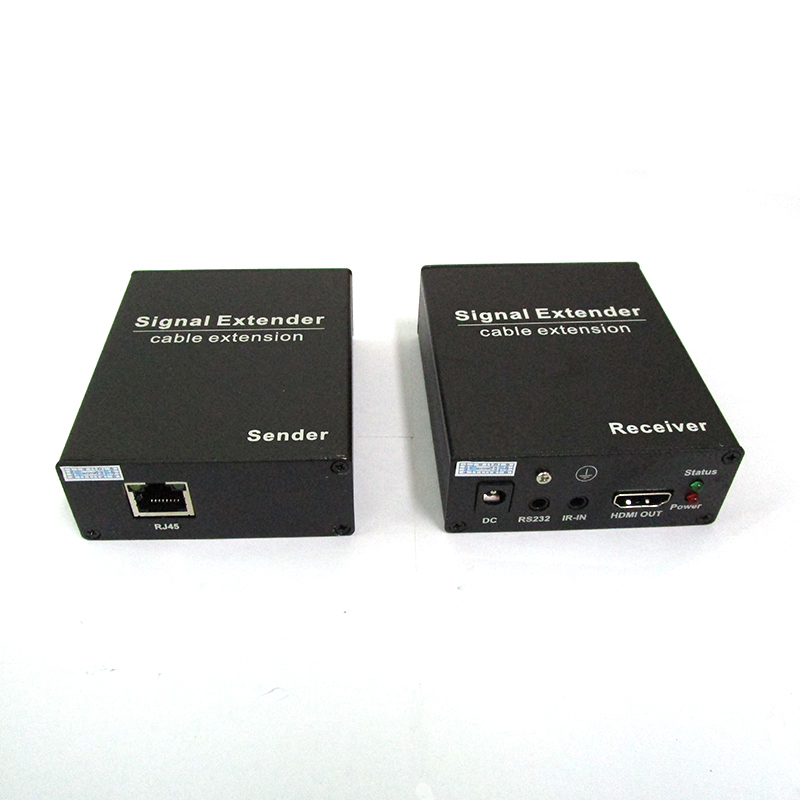

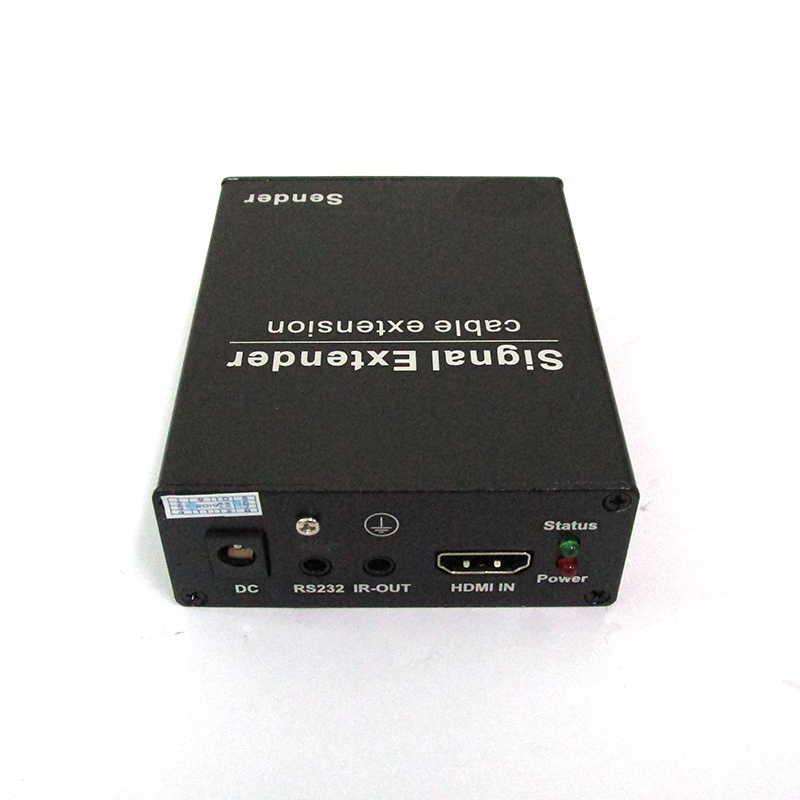

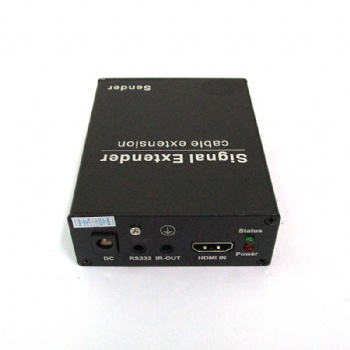

SWEXIP02A，170M HDMI Extender over IP with IR and RS232 pass through

Features：

1, Support 1920×1080@60Hz

2, One-to-one direct connection can reach 170m, and can extend 100m more after connecting network switch.

3, Single network transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play

4, Support DVI/HDMI interface

5, Support TCP/IP protocol, adding network switch not even can extend transmitting distance, but also can work as a video distributor.

6, With IR and RS232 pass through

Specification:

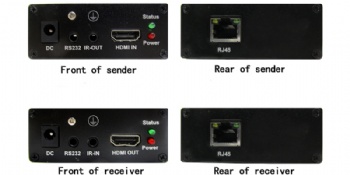

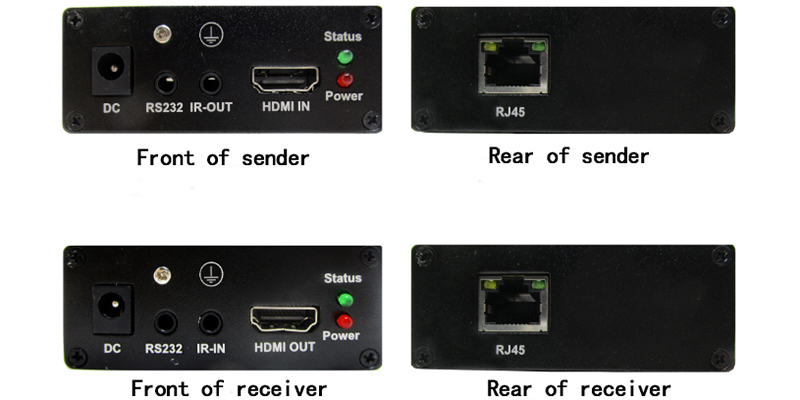

Input /Output connector.........................................HDMI, IR, RJ-45

HDMI version....................................................HDMI1.3

HDCP...........................................................HDCP1.2

HDMI resolution.........................................1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format.........................................24bit/deep color 30bit/deep color 36bit

Audio format.........................................DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS.........................................0.5-1.5Vp-p(TTL)

DDC.........................................5Vp-p(TTL)

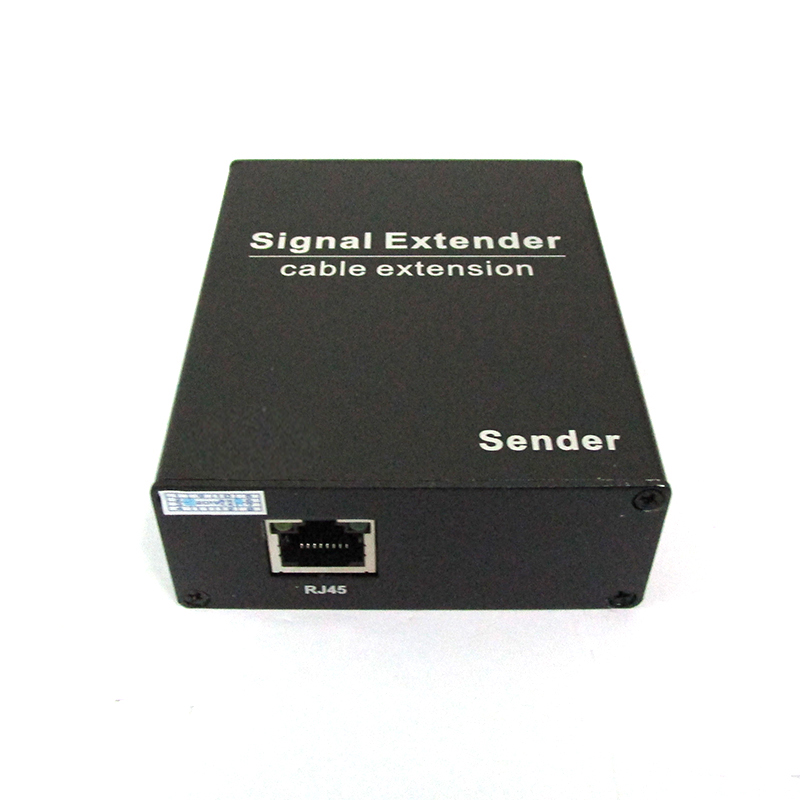

 Size (L× W ×H).........................................Sender : 93mm*74mm*30mm

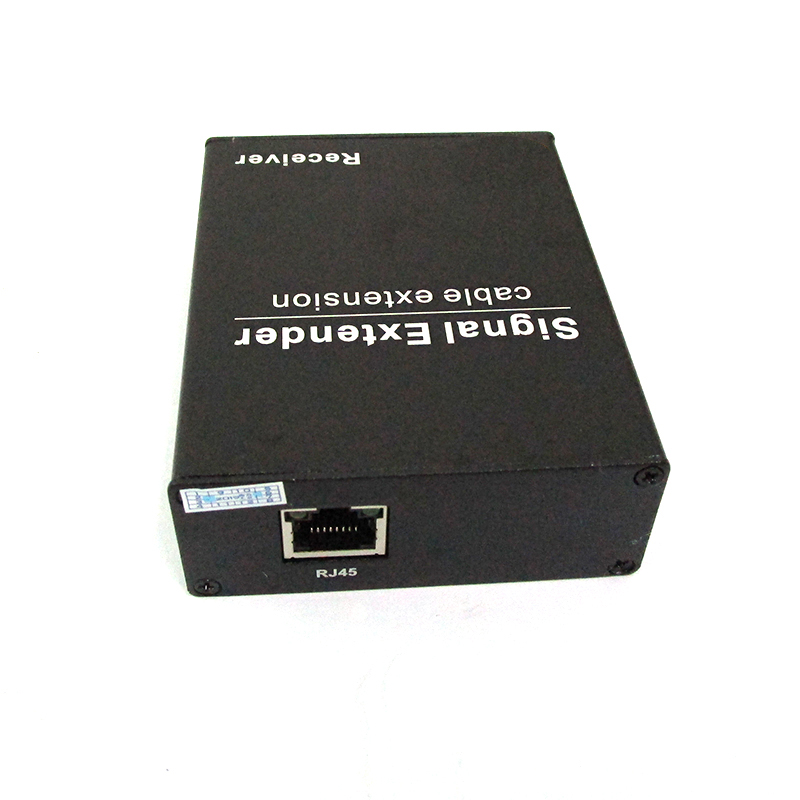

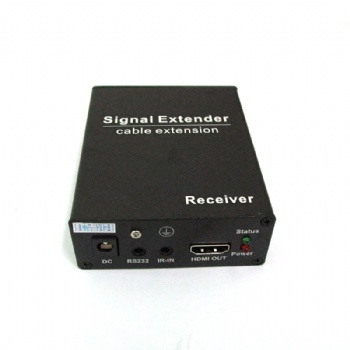

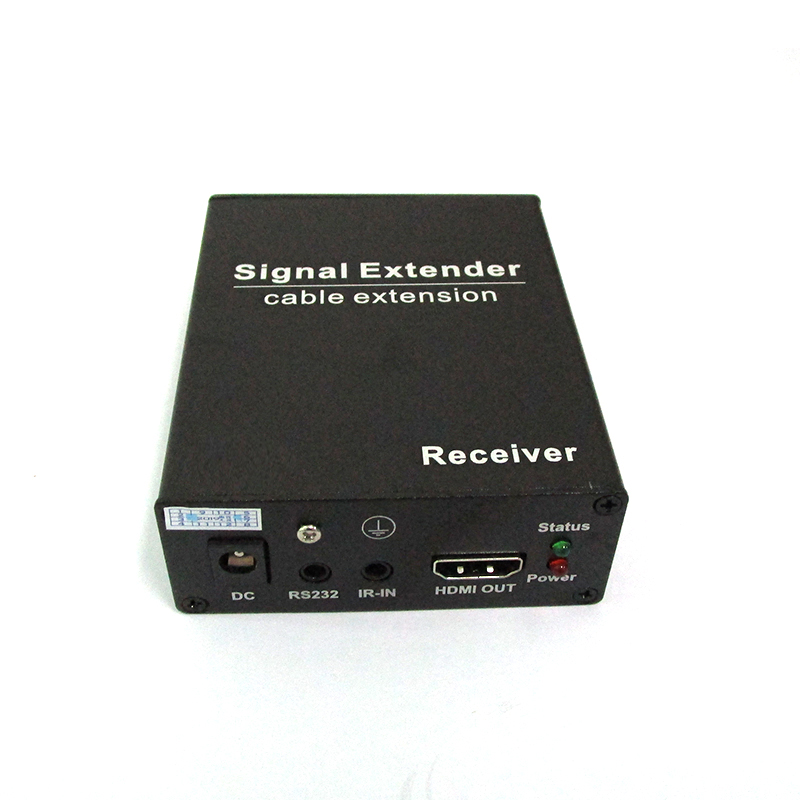

                                                            Receiver: 93mm*74mm*30mm

 N.W..........................................0.3Kg

Power Voltage.........................................DC5V/1A

sender power consumption.........................................4W

receiver power consumption.........................................3W

Working temperature.........................................-15℃-55℃

Storage temperature.........................................-40-80℃

Humidity.........................................0-95% (non-condensing)
