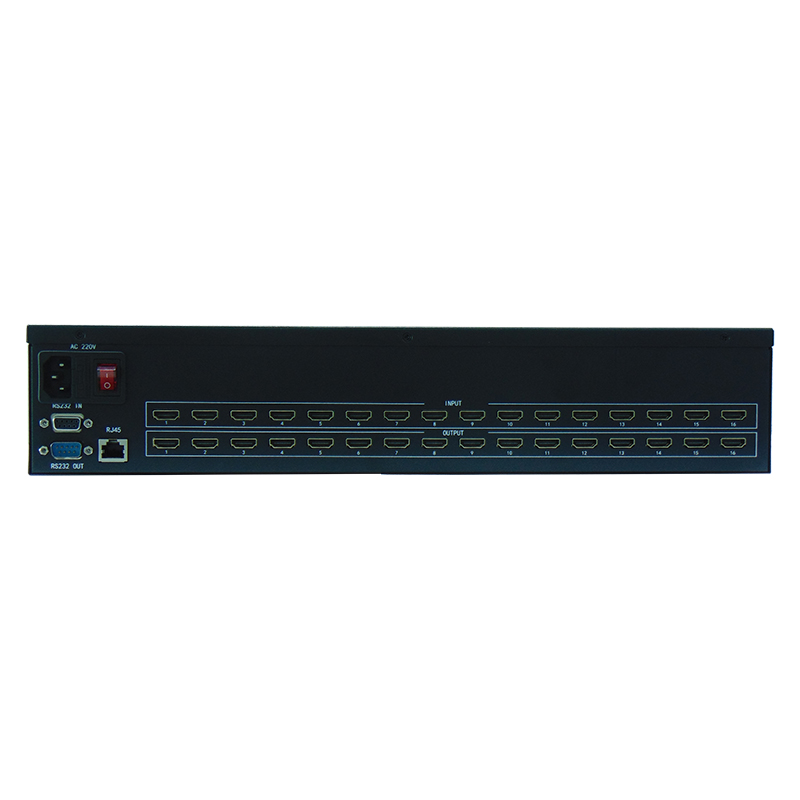

SWMX16,16x16 HDMI Matrix support 4K with RS232 and IP control

 Features：

 1.Interface bandwidth 3.4Gbps (total bandwidth 10.2Gbps),support the highest resolution3840*2160@30Hz;

2. Support HDCP1.4revision, provides outstanding security and digital

content protection capabilities;

3. Support fast switching operation; support infrared remote control;

4.The input and output board support card function, can be hot swappable;

5. Supports basic matrix control instructions and basic matrix functions；

6.With power down memory function, with power off site protection function;

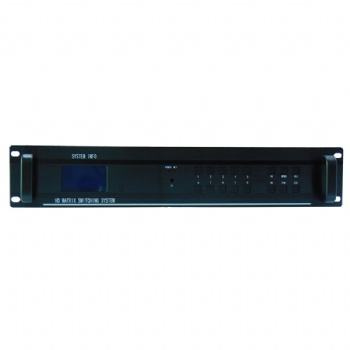

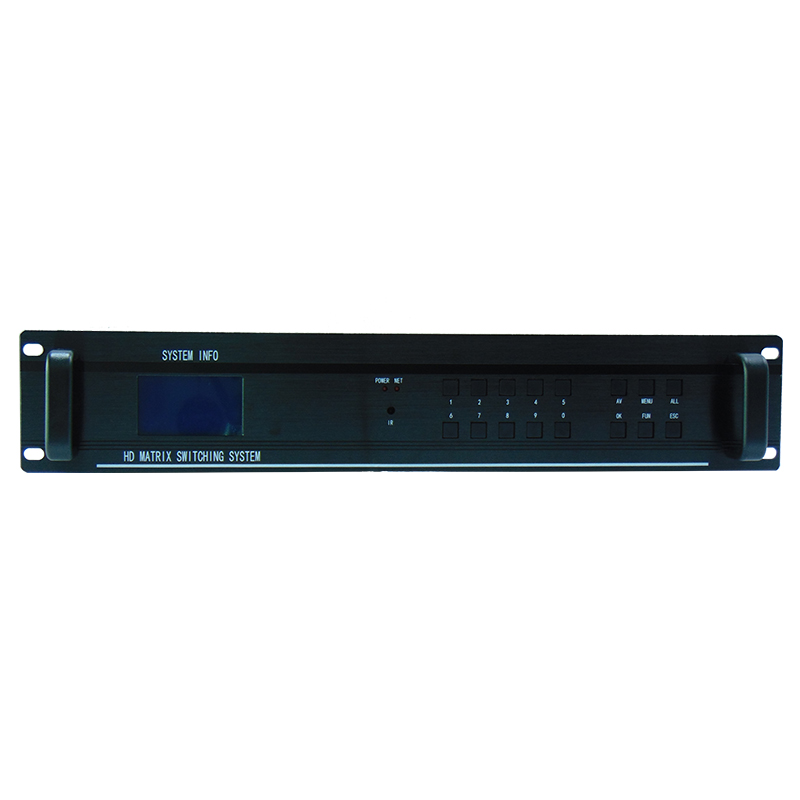

7. Flexible control mode, with the crystal button panel operation, but also provides 2 standard RS-232 communication interface and  RJ45 port,compatible with a variety of environments, user-friendly and a variety of remote control quipment with the use of;

One RJ45 interfacer use RS232,It is a serial port;

One RJ45 interfacer use TCP/IP,it is LAN port;

8.Built in International standard power;

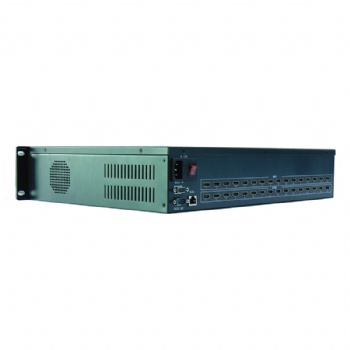

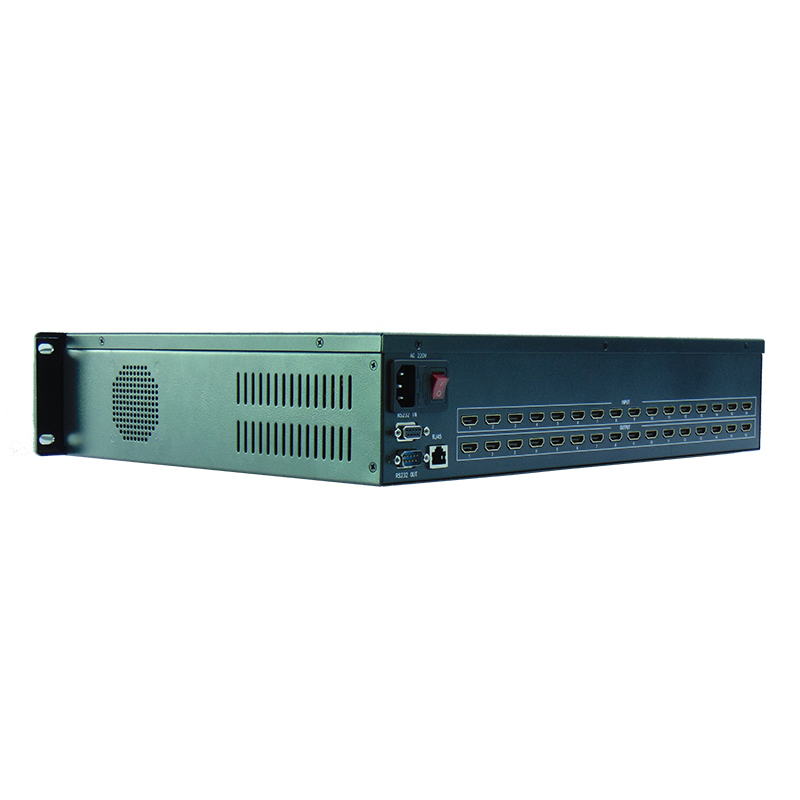

9. Full metal chassis compatible with standard 19 inch cabinet;

10. Support user defined control software LOGO;

11. Support HDCP can decode Blue ray DVD and so on the corresponding equipment.

Specification

Input numbers...............................................................16

Output numbers............................................................16

Signal interface...............................................................HDMI

HDMI protocol...............................................................Support HDCP1.4 and HDMI1.4,compatible with the DVI1.0

Bandwidth.......................................................................3.4Gbps（total 10.2Gbps，each color 3.4Gbps）

Resolution Max..............................................................840x2160@30Hz

Clock jitter......................................................................<0.15Tbit

Bit rise time....................................................................<0.3Tbit（20% - 80%）

Bit drop time.................................................................<0.3Tbit（20% - 80%）

Maximum transmiision delay....................................5ns（±1ns）

Switching speed..........................................................200ns（Max.）

Signal intensity............................................................T.M.D.S +/-0.4Vpp

Impedance.....................................................................50Ω

Input EDID....................................................................EDID can read and write

The maximum input distance.................................1920x1080@60hz@less then 30 meters(good cable)

The maximum output distance..............................1920x1080@60hz@less then 20 meters(good cable)

Serial port version.....................................................RS232、Panel key、Remote

LAN port version.......................................................TCP/IP、RS232、Panel key、Remote

Baudrate and protocol.............................................Baudrate：9600,data bits：8bits,stop：1,no parity

RJ45 serial port..........................................................1 = TX,2 = RX,5 = GND

Power input................................................................AC100 - 240V，50/60hz

Temperature...............................................................Storage and use temperature: -20° ~ +70° C

humidityStorage and use humidity.....................10% ~ 90%

Size................................................................................1Uwith standard 19 inch box

Mean time between failures....................................30000hours
