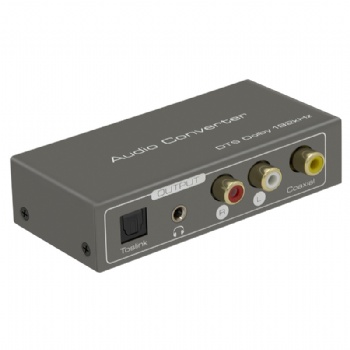

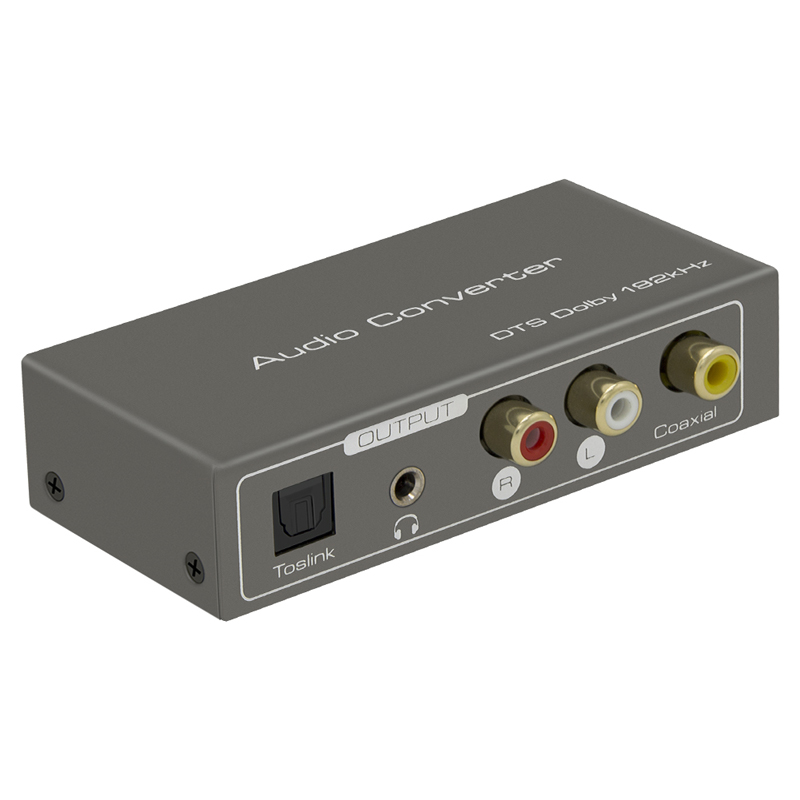

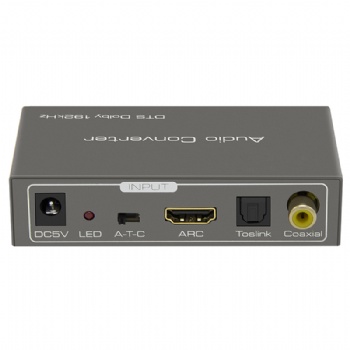

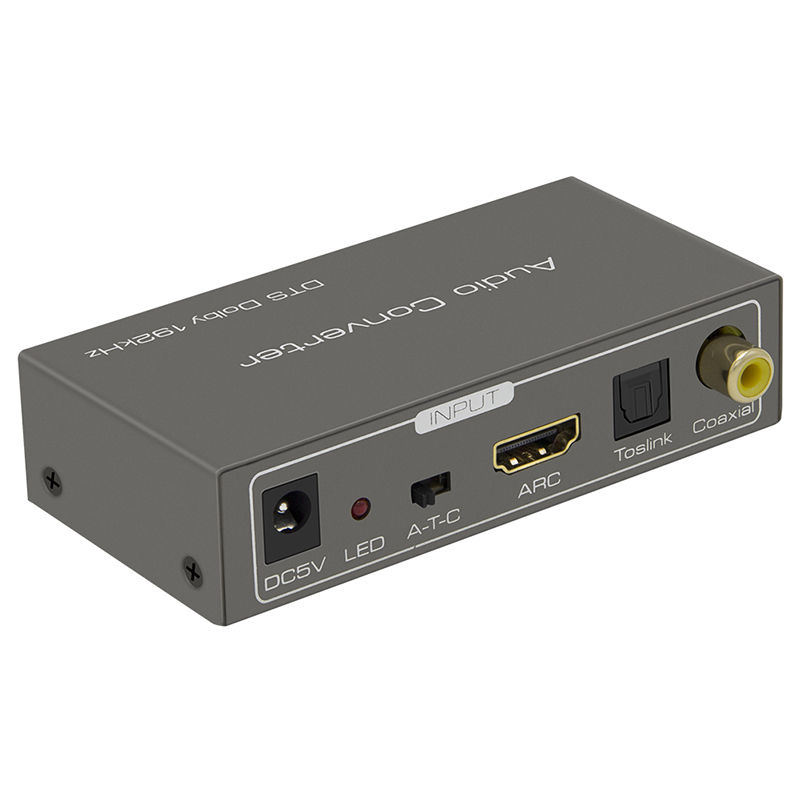

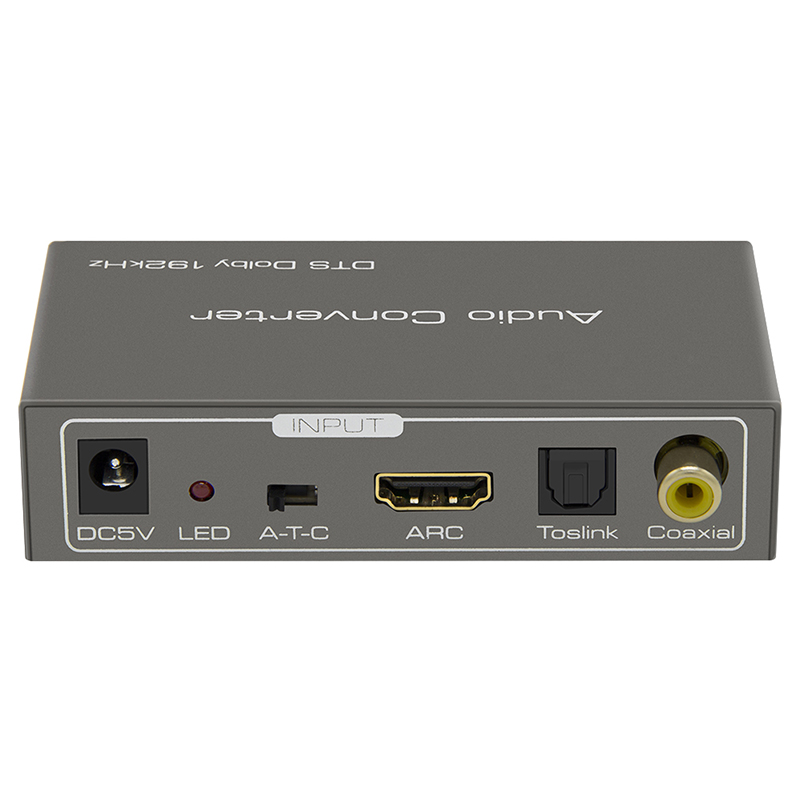

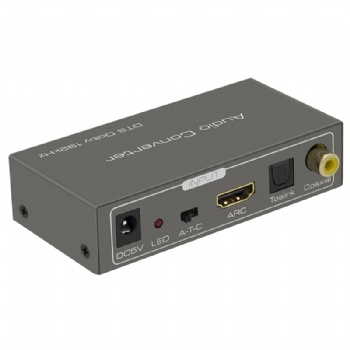

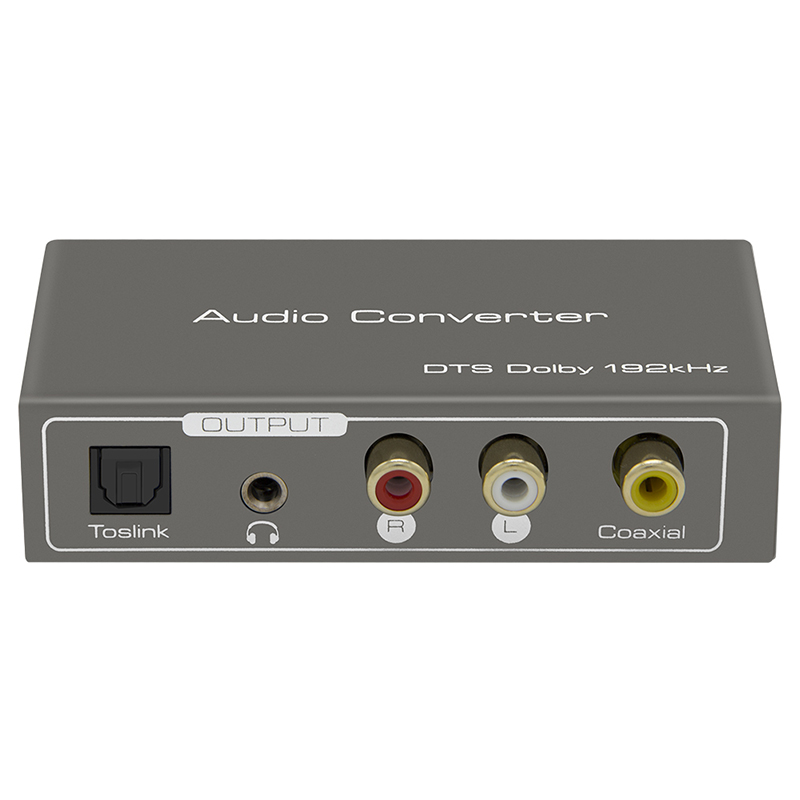

SWAC01,Multi-function digital to analog audio converter

Features:

1.Toslink ,coaxial, ARC input, Toslink , coaxial ,R/L stereo Audio ,3.5 Min Jack audio output simultaneously.

2.Input channel can be selected by switch button.

3.Audio format support: Toslink/coaxial output: DTS/Dolby-AC3/DSD/LPCM. R/L or AUX output: LPCM2.0

4.Support last time working state memory when power off.

5.Support over-voltage protection can prevent the damage caused by connecting unmatched power adapter.

6.Compact design and easy to install.

7.DC5V power supply

Specifications:

Support audio format…………………………………………………................……..LPCM2.0/DTS/Dolby-AC3

Sampling frequency………………................................................................................……192KHz

Peak wavelength………………...........................................….........................................…650nm

Max baud rate…..…………….………...…………………………………..........................………………16Mbps

Output cable distance ....……………….....…≤10m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current………………........................………………………………………………..….......100mA

Power adapter format………….......………....…...Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V

Operating Temperature range……............……………............................ 0°C ~ 40°C / 2°F ~104°F

Operating Humidity range…………….…………............…….………...….5 to 90%RH (No Condensation)

Storage Temperature....................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)………………………………...................……….…….…………......114x48x23 (mm)

Weight…..……………………………………………………..............................……..……..…………………138g
