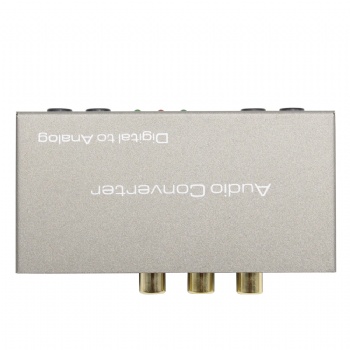

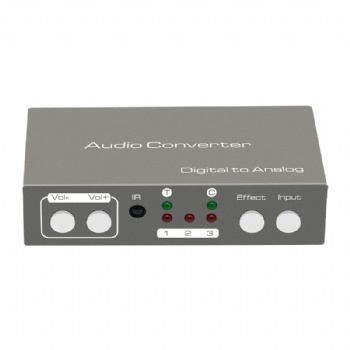

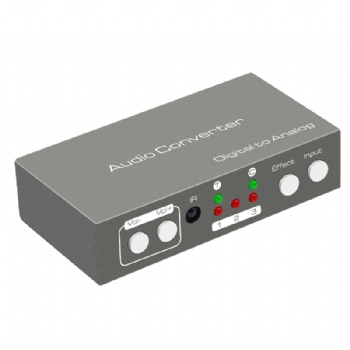

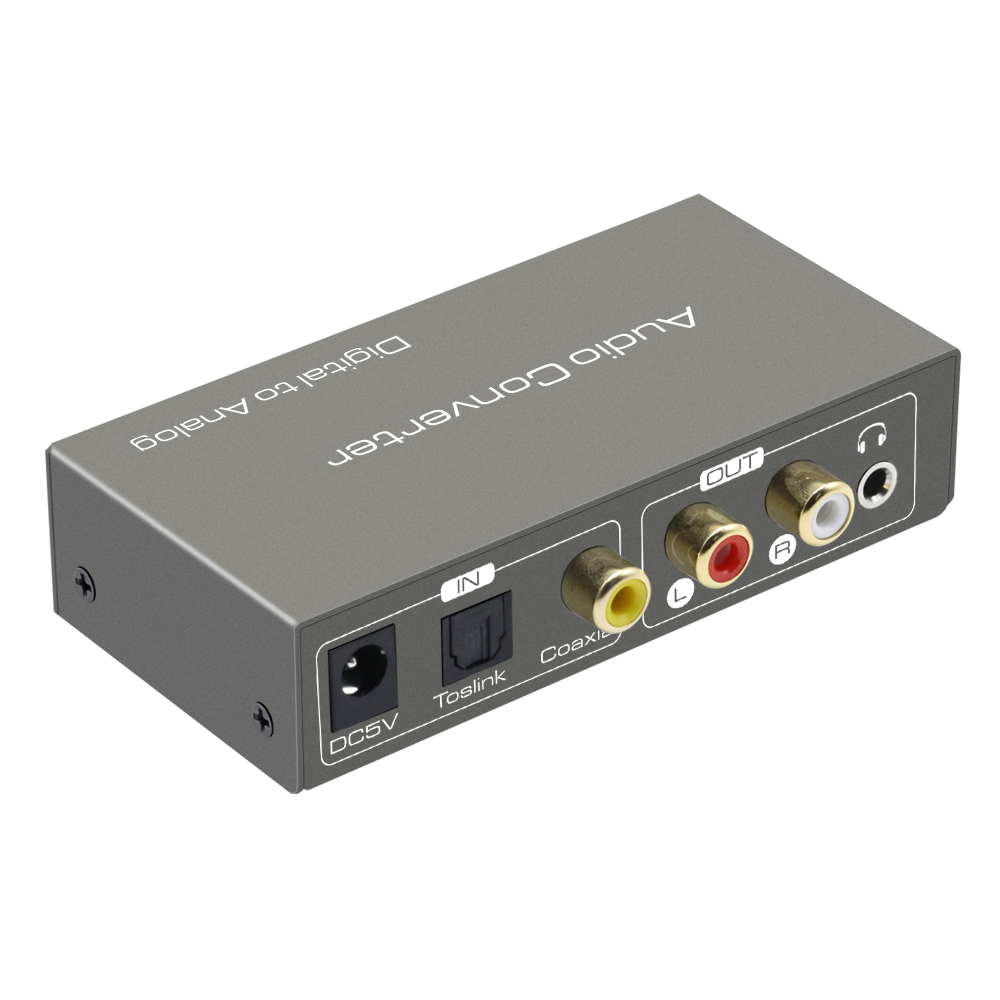

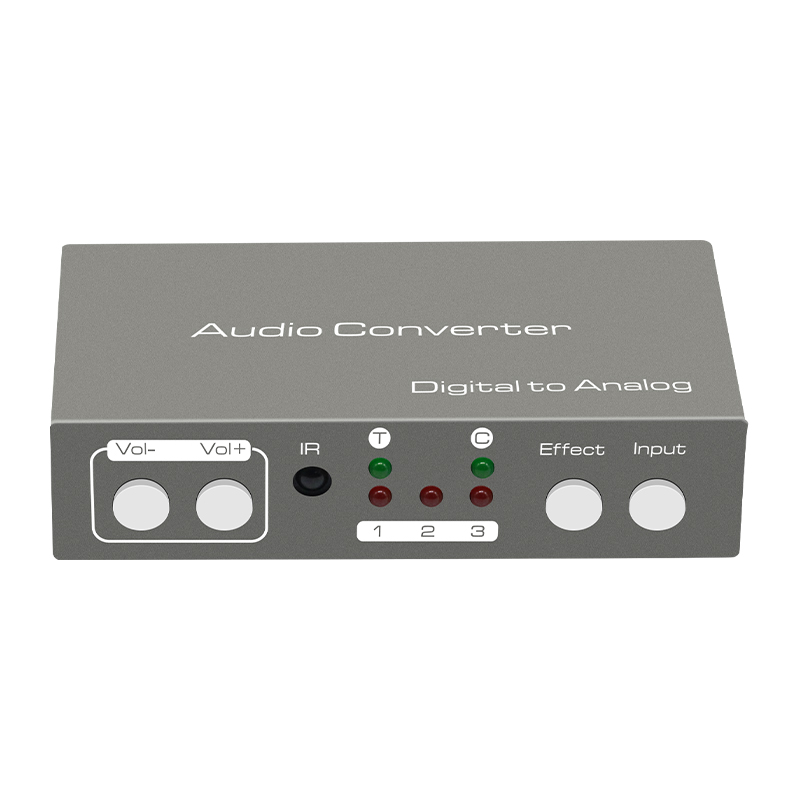

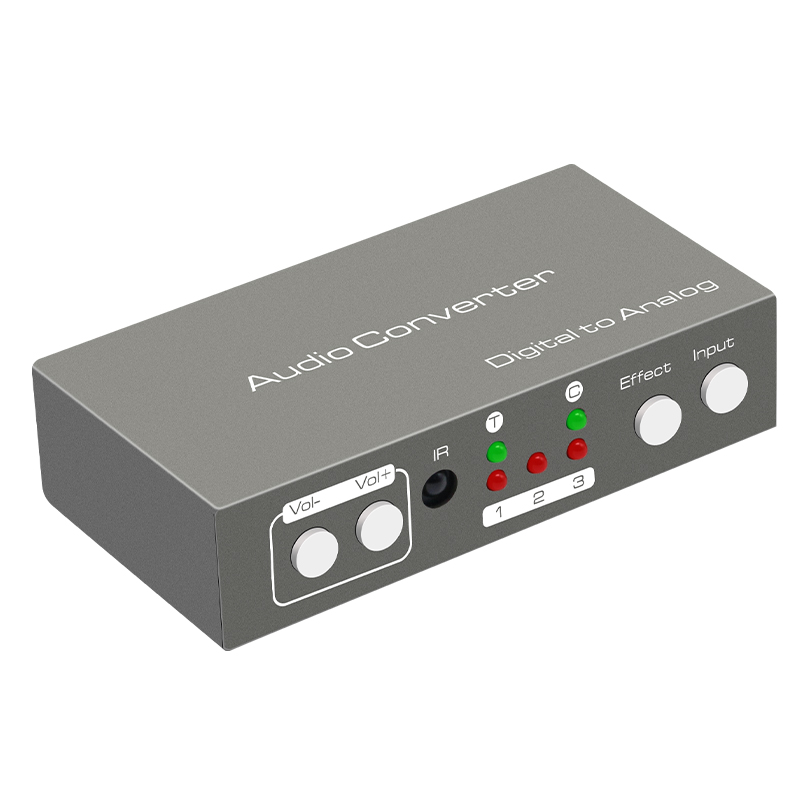

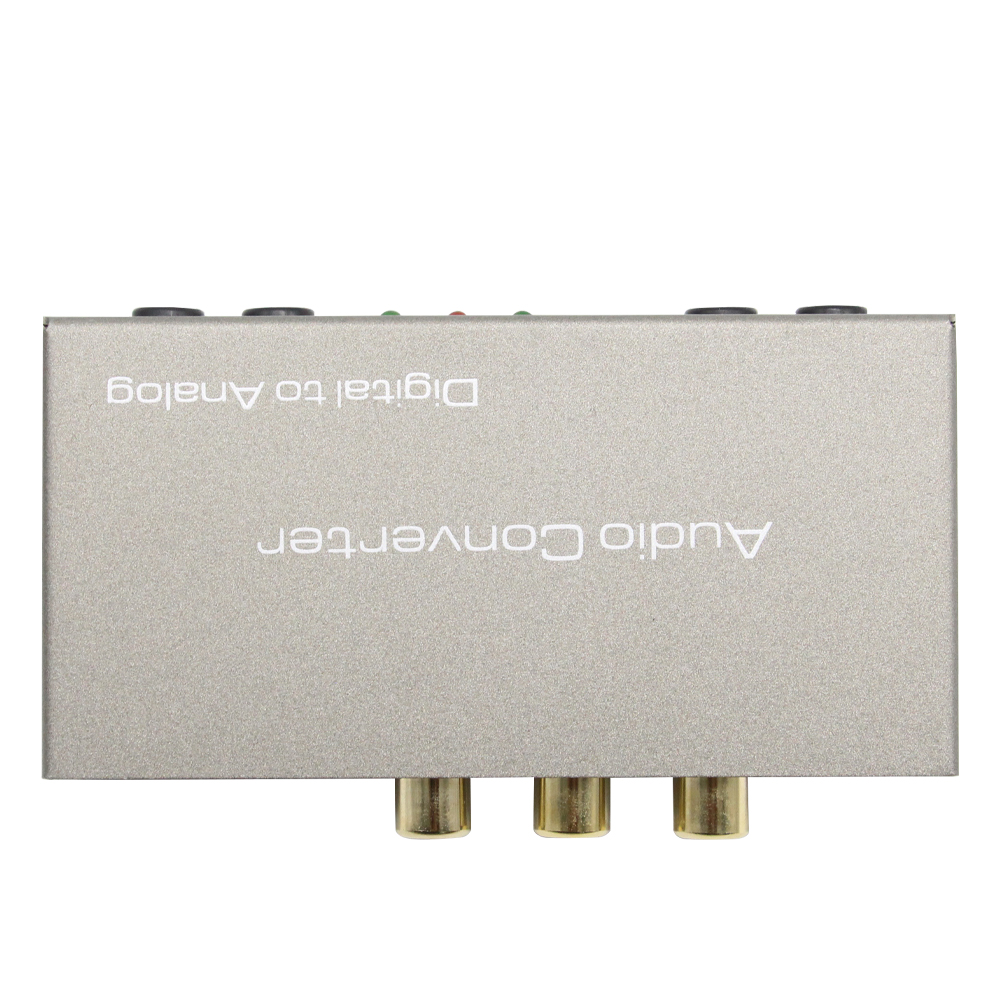

SWAC07,Digital to Analog audio Converter

Features:

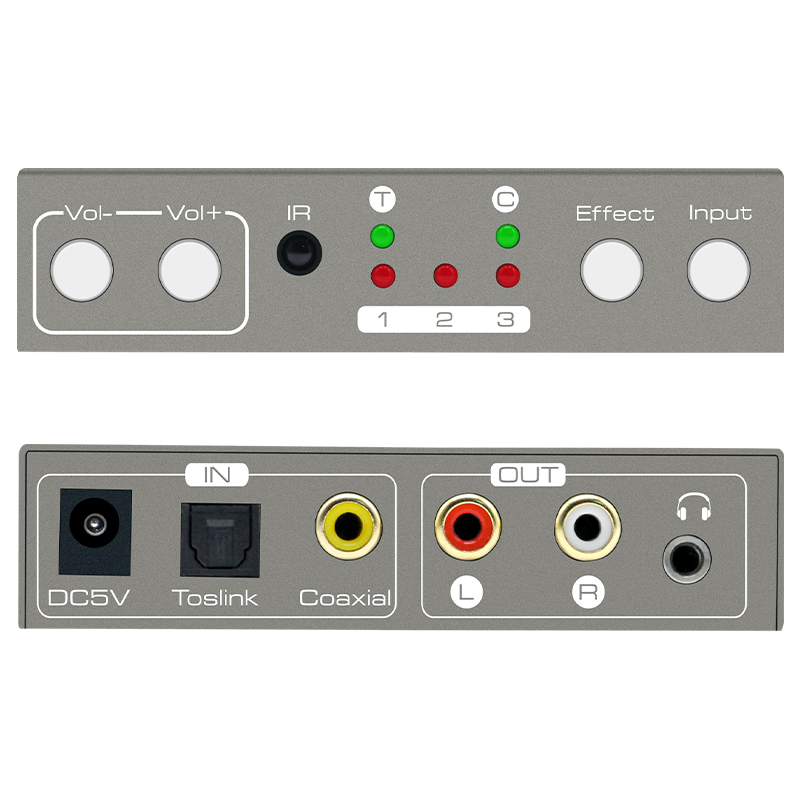

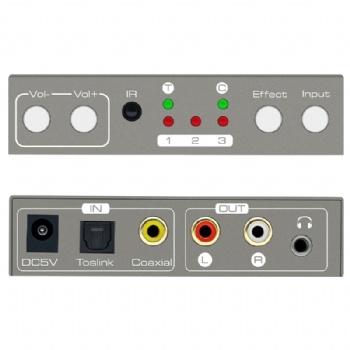

1.Support toslink or coaxial audio input, And L/R Audio ,3.5 Min Jack audio output simultaneously.

2.Input channel can be selected by switch button.

3.Audio format support: LPCM.

4.Support last time working state memory when power off.

5.Support over-voltage protection can prevent the damage caused by connecting unmatched power adapter.

6.Support Audio by pass, Music mode, Movie mode three sound modes.

7.Support volume amplifier function.

8.Compact design and easy to install.

9.Low power consumption, Support DC5V or USB 5V power supply.

Specifications:

Support audio format…………………………………………………………………………..LPCM2.0

Sampling frequency………………........................................ ……...............................……192KHz

Peak wavelength………………........................................... ……...............................………650nm

Max baud rate…..…………….………...…………………………………………………………16Mbps

Output cable distance .. …………………≤10m(Use the optical fiber cable loss less the 0.2Db/m )

Max working current………………………………………………………………..……………...100mA

Power adapter format…………….Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V or USB 5V

Operating Temperature range……..…………….................................... 0°C ~ 40°C / 2°F ~104°F

Operating Humidity range…………….…………. …….……….….5 to 90%RH (No Condensation)

Storage Temperature.........................................................................-20°C ~ 60°C / -4°F ~ 140°F

Dimension (L x W x H)……………………………………….…….………….………95x48x23 (mm)

Weight…..…………………………………………………………..……..…………………………138g
